Affinity Concentrator KST7030

Mini-PCIe Form Factor Peripheral

The KST7030 Affinity Concentrator is based on Semtech’s SX1303 LoRaWAN chipset. The Mini-PCIe form factor maximizes compatibility with various gateways, enabling the user to add LoRaWAN capabilities. To maximize versatility, the Affinity Concentrator Card offers two unique pinouts. Please refer to the below Product Bulletins for the different Pinouts.

KST offers an antenna kit that includes an FCC approved LoRa antenna and an antenna interface connector. (Coaxial U.FL (UMCC) to SMA 1.13mm OD Coaxial Cable 3.000" (76.20mm) Cable Assembly) Antenna kits are sold separately.

Contact us today for customizations or firmware support.

Product Bulletin - KST7030 Rev A Pinout Product Bulletin - KST7030 Rev B Pinout

Close

AcTink KST20 Series

Electronic Paper Displays

The AcTink (Act-tee-ink) Series are versatile ultra low power Electronic Paper Displays that can display any information with ease. They can be controlled locally through Bluetooth Low Energy or remotely through your LoRaWAN Network Server.

Product Bulletin

Close

Affinity KST7020

LoRaWAN Gateway

The Affinity KST7020 Gateway is built for the LoRaWAN enterprise user. Affinity offers a robust custom enclosure, industrial rated components, and device fleet management capabilities. Affinity is the perfect solution for gathering LoRaWAN sensor data using multiple gateways deployed in multiple locations. Affinity utilizes Amazon Web Services (AWS) and offers a truly plug and play solution for all of your LoRaWAN needs. The Affinity Gateway is sensor agnostic and easily connects to the LoRaWAN sensor of your choice.

Affinity is offered as a Helium Hotspot and Private LoRaWAN Gateway.

Enterprise and Distributor orders will be fulfilled in the order that they are received. No Affinity Hotspots will be allocated to any employees, company insiders, or partners. We at KST take pride in our Enterprise clientele. All shipment updates are directly communicated to our Enterprise clientele and Distributors.

Product Bulletin - Helium Product Bulletin - Private Affinity Setup Guide External Reference Specification

Close

Euclid KST33 Series

Distance Sensor Family

The Euclid Series Distance Sensor Family, are patent-pending devices capable of contact-less measurements of solid and liquid levels. This solution has no dead zone and is accurate up to 10 mm. They are capable of transmitting that information over short ranges using Bluetooth Low Energy (BLE) or long-range using a variety of Low-Power Wide Area Network (LPWAN) or Cellular radios.

We plan to release our 4th generation distance sensor in 2022.

Product Bulletin Bracket Template Lens Cleaning

Close

KST1120-STK

Wireless UART Over BLE

The KST1120-STK contains a multinational, pre-certified module that requires almost no effort to satisfy wireless certification efforts. It also comes pre-flashed with firmware allowing the user to pick and choose between mobile SDKs and apps as well as KST’s Cloud-based support infrastructure. The user can determine the components and capabilities which speed up your Go-To-Market strategy and decrease
the up-front investment.

Close

Tarsier KST51 Series

NIR Spectroscopy

Tarsier offers a portable Spectrometer that can be used for “in the field” measurement. We have created various NIRS solutions which are compact, inexpensive, and precise, based on Texas Instruments micromirror technology. KST Tarsier can quantify and characterize both solid and liquid materials.

Specifications

• Spectral Response: 900 to 1700nm
• SNR: 5000:1 with 1-second scan
• Resolution (FWHM): 10nm
• Wavelength Accuracy: +/- 1nm
• Thermocouple Integration

Close

Peak Test Lab

Program, Test, and Track Your Microcontroller and Microprocessor-based Products.

Peak Test Lab was founded in 2022 as a wholly owned division of KS Technologies, LLC. Our co-founders are both former Hardware and Product Engineers from the Test & Measurement divisions of Hewlett-Packard / Agilent Technologies. We began product flash and test as a service to clients whom we created remote sensing solutions for, filling a much needed gap when products were ready to move into high volume manufacturing.

More Information

Close

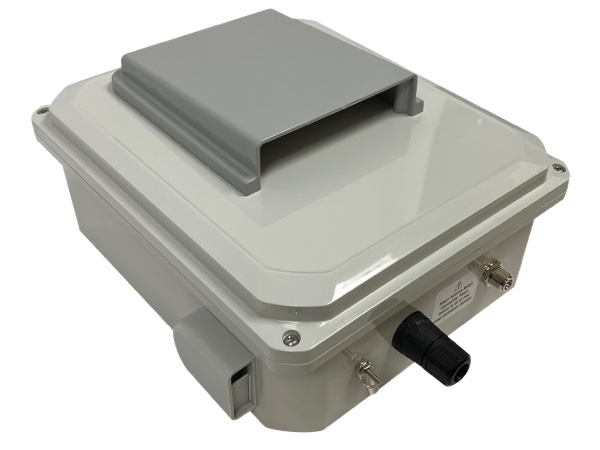

Affinity KST7022

Outdoor LoRaWAN Gateway

The KST7022 is an Outdoor-Rated LoRaWAN Gateway built to support public (such as Helium and The Things Network) and private (such as AWS IoT Core for LoRaWAN) LoRaWAN Network Servers. Affinity offers a robust outdoor-rated enclosure, industrial-grade components, and device fleet management capabilities. Fleet management can be done by KST or KST can expose our AWS IoT Greengrass deployment details to your enterprise for management.

Enterprise and Distributor orders will be fulfilled in the order that they are received. No Affinity Hotspots will be allocated to any employees, company insiders, or partners. We at KST take pride in our Enterprise clientele. All shipment updates are directly communicated to our Enterprise clientele and Distributors.

External Reference Specification

Close

Affinity KST7026

Outdoor LoRaWAN Cabinet

The KST7026 is an Outdoor-Rated LoRaWAN Gateway built to support public (such as Helium and The Things Network) and private (such as AWS IoT Core for LoRaWAN) LoRaWAN Network Servers. The Affinity Cabinet offers a robust outdoor-rated enclosure, industrial-grade components, and device fleet management capabilities. Fleet management can be done by KST or KST can expose our AWS IoT Greengrass deployment details to your enterprise for management.

Enterprise and Distributor orders will be fulfilled in the order that they are received. No Affinity Hotspots will be allocated to any employees, company insiders, or partners. We at KST take pride in our Enterprise clientele. All shipment updates are directly communicated to our Enterprise clientele and Distributors.

External Reference Specification

Close

KST3120

Limit Switch Sensor

The KST3120 is a LoRaWAN limit switch sensor with an operating range between +10°C to +40°C. Multiple armature and cable lengths are available to fit your exact application. The KST3120 provides an “On” and “Off” uplink value.

Product Bulletin External Reference Specification

Close

Euclid KST32 Series

Mini Distance Sensor

The KST3220 is a LoRaWAN distance sensor with an operating range between +10°C to +40°C and less than 10mm resolution between 0m to 4m total range. The KST3220 includes an anti-smudge and IR filter.

Product Bulletin External Reference Specification
