Setup Guide

What's in the Box?

Included in the box, you will find the following:

  • 1 Affinity Hotspot
  • 1 WiFi Antenna
  • 1 GPS Antenna
  • 1 LoRaWAN Antenna

    • Optional Items Available Separately:

  • Wall Mounting Hardware
  • 2m Cat 5e Ethernet Cable
  • 12V 1A(12W) DC Power Supply
  • 802.3af PoE Injector

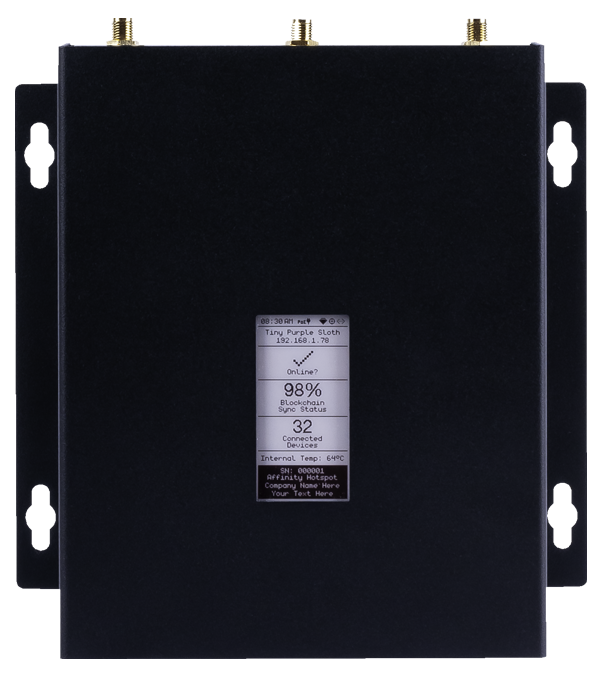

    • Affinity
    Affinity
    Affinity Antennas
    WiFi, GPS, and LoRa Antenna

    Connecting the Antennas

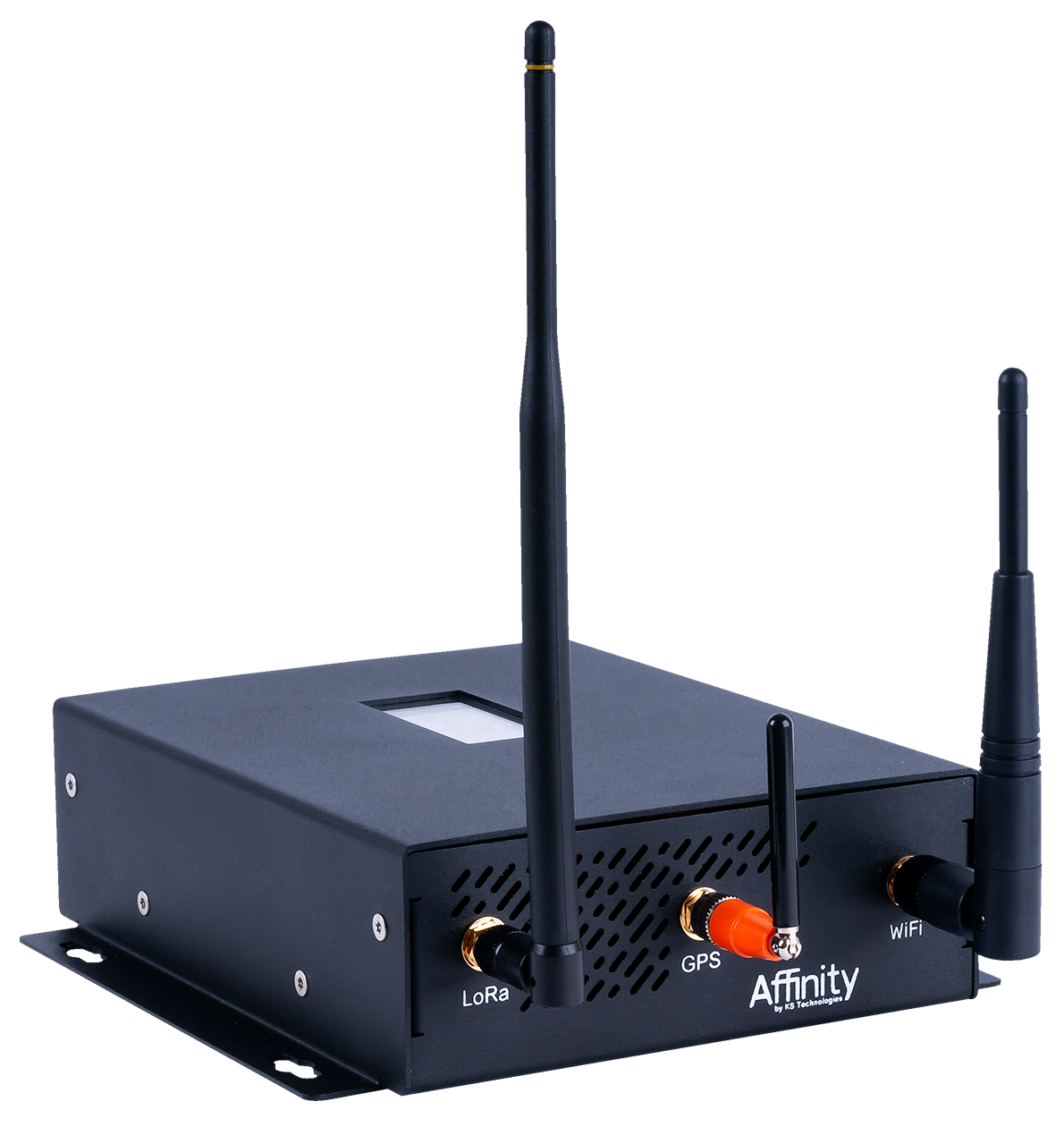

    Affinity with Antennas Attached

    Use the artwork on the inside of the Affinity packaging to match up the antennas if you are unsure. Or you can reference the images shown below.

    Affinity Antenna Types

    Connecting Power

    The Affinity Hotspot has two power options:

  • 12V 1A(12W) DC Power Supply
  • Power-over-Ethernet (PoE 802.3af)

    • Connect either DC Power or PoE to power up the Affinity. The AcTink display will update from the factory image to the standard operation image.

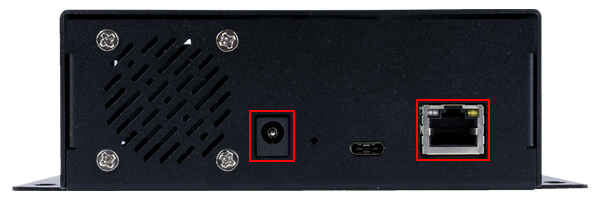

    Affinity Bottom Connectors

    Frequently Asked Questions

    Yes. The Affinity is FCC certified using a 2.2 dBi antenna. Using an antenna that is not specified by KST could put the user out of compliance with FCC regulations and void the Affinity warranty.

    No, the KST7020 Affinity Helium Hotspot is an Indoor only Hotspot. Putting the KST7020 Affinity hotspot outside will void the warranty. KST is launching an industrial enterprise grade outdoor version with several backhaul options. Please reach out to us for additional information at info@kstechnologies.com.

    If you opened up the Affinity enclosure, you have voided your warranty. For assistance, please contact us at info@kstechnologies.com.
